What?
Adapt action cameras to any PVS-14, 15, 18, & 31 diopter lens to record what you see while using your NVG!
Why?
Analog image intensifier tube technology enables Night Vision Goggles (NVG) and their users to see in the dark. Their analog nature does not lend toward recording, but digital NVG solutions have not matched the sensitivity of analog NVGs. Thus the need to convert analog NVG images to digital arises for both recording and streaming of NVG images. Be it for training & promotion material, or for connecting NVG users digitally in real-time, the demand for NVG recording solutions is growing.
The solution space for an NVG recording solution is constrained by metrics of space, weight, & power, as well as those of captured image quality, digital capabilities, and overall user experience. Few commercial products have existed in this space, ranging from expensive military grade kits to hobby grade spy cameras in FDM 3D printed housings. Prior beam splitter solutions have failed to capture the entire NVG image due to non-optimal beam splitter geometries. Spy camera based solutions block a portion of the NVG user’s view with a camera & ribbon cable. The mounted camera is also too close to capture the entire NVG image and instead provides a false “full circle” due to the extremely close placement filling the camera’s circular pin-hole aperture.
Description
The Night Vision Goggle Recording Adapter (NVGRA) captures the entire NVG tube image while not obstructing the user’s view. It exists within the confined space between an NVG user’s face, their eye protection, helmet, and the NVG’s diopter lens. It provides a full NVG image to any action camera by reflecting a small portion of the light with a plate beam splitter. The beam splitter (BS) is manufactured with a tailored geometry that dips into the NVG diopter lens assembly. This unique feature both allows for the full image to be captured and also reduces how far the recorder extends towards the operator’s face.
Use Cases
Record your NVG footage…
- for review after mission, training, or any other event.
- to capture your fun moments in the dark!
Stream your NVG footage…
- to a nearby phone for training & coaching, leveraging the ability to see what you see.
- over a tactical data network to enhance situational awareness of the battlefield!
Available on Amazon
Buy the NVGRA-14 on Amazon on Amazon
Buy the NVGRA-31 on Amazon
Buy the NVGRA-14-M on Amazon
Or buy the NVGRA-14-M Here with this Buy With Prime button
Via Paypal Invoice
Don’t have Amazon and/or want to buy directly from TOP? Reach out on social media or info@totaloverwatchproductions.com and we can do business via Paypal invoice.
Distribution
Know a retailer that would like to distribute? Contact us on social media for bulk pricing, or via our contacts page.
Compatibility
The new modular variants of the NVGRA come with a 32 mm camera adapter installed. 38 & 40 mm adapters are available. Additional adapters will be available soon. Check below for dimensions for designing your own adapters if you are so inclined.

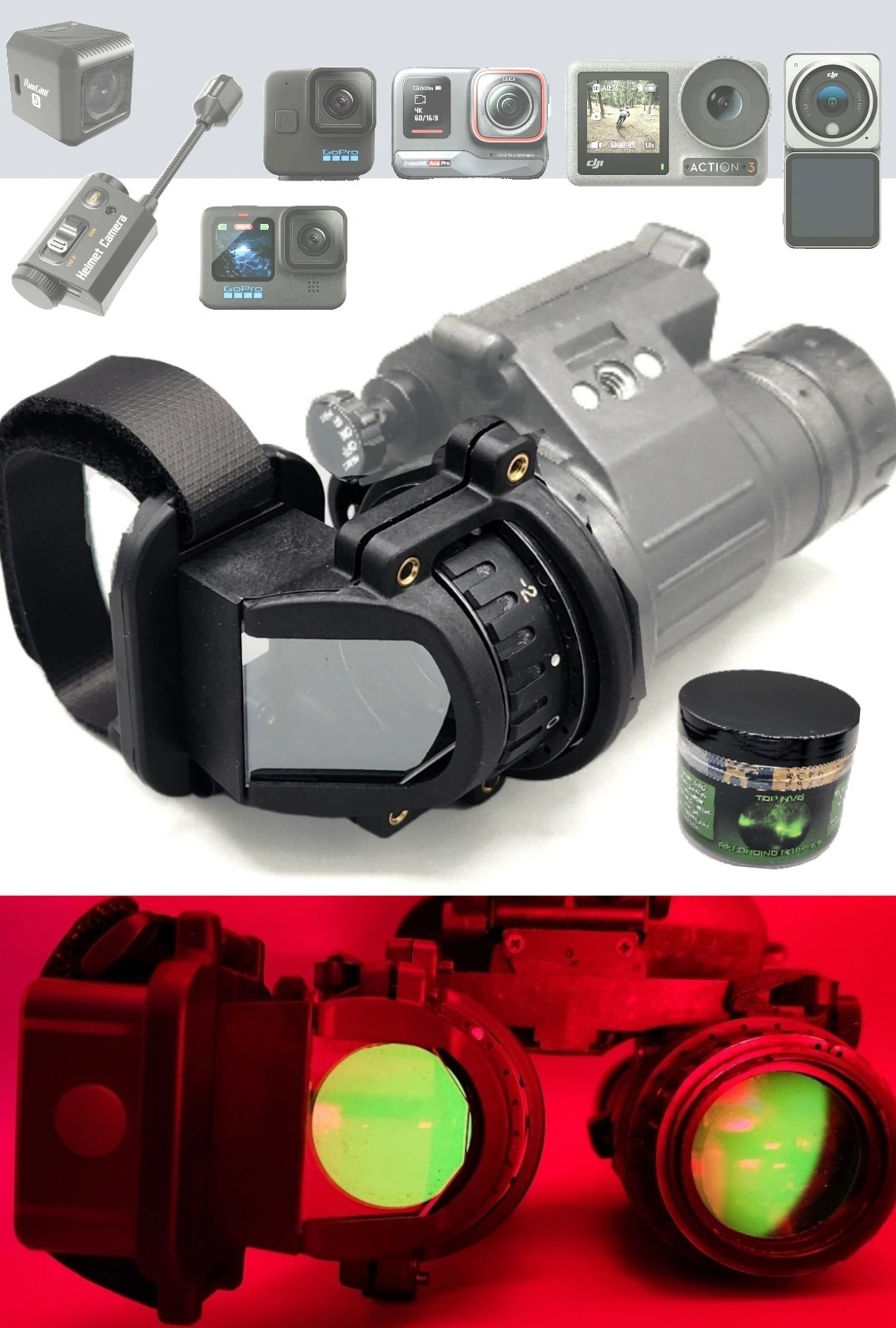

Action Cameras
| NVGRA Camera Adapter | Camera |
|---|---|
| 32 mm | GoPro Hero 7,8,9,10,11,11 Mini, DJI Action 3 |
| 32 mm w/ shim | GoPro Hero 3,4,5 |
| 35 mm | Insta360 Ace Pro |
| 38 mm | RunCam 5 |
| 40 mm | DJI Action 2, Action 3 in Case, Insta360RS, |
| 40 mm w/ shim | GoPro Session, RunCam 5 |
| HC Clip | RunCam Helmet Camera |
NVGs
| NVGRA | NVG |
|---|---|
| NVGRA-14 | Any PVS-14 Diopter Lens: PVS-14, ANVIS-6&9, Sentinels, DTNVG, LLUL, etc |
| NVGRA-31 | PVS-31A |
| NVGRA-50 | AGM-50 |
| NVGRA-15 | PVS-15 & 18 |
| maybe coming | Jerry’s |
GoPro Compatibily
- GoPro has kept their lens face dimensions stable for a few generations now, so we boast compatibility with the Hero 7-12 lineup. As more users try different cameras, we will update this section.
NVG & Mount Compatibilty
- As above, we are currently fleshing this out. We are exploring different mount combinations as well as left/right eye orientations. Some combinations simply will not allow the GoPro to fit, be it from the helmet or your face. Check back soon for additional information on the above compatibility matrix.
Additional Compatibility
- Checkout the adapters page for information on adapting the NVGRA to other NVGs, thermals, & scopes!
Instructions
Find instructions here
Suggested Settings
Warranty
Find the warranty here
Dimensions

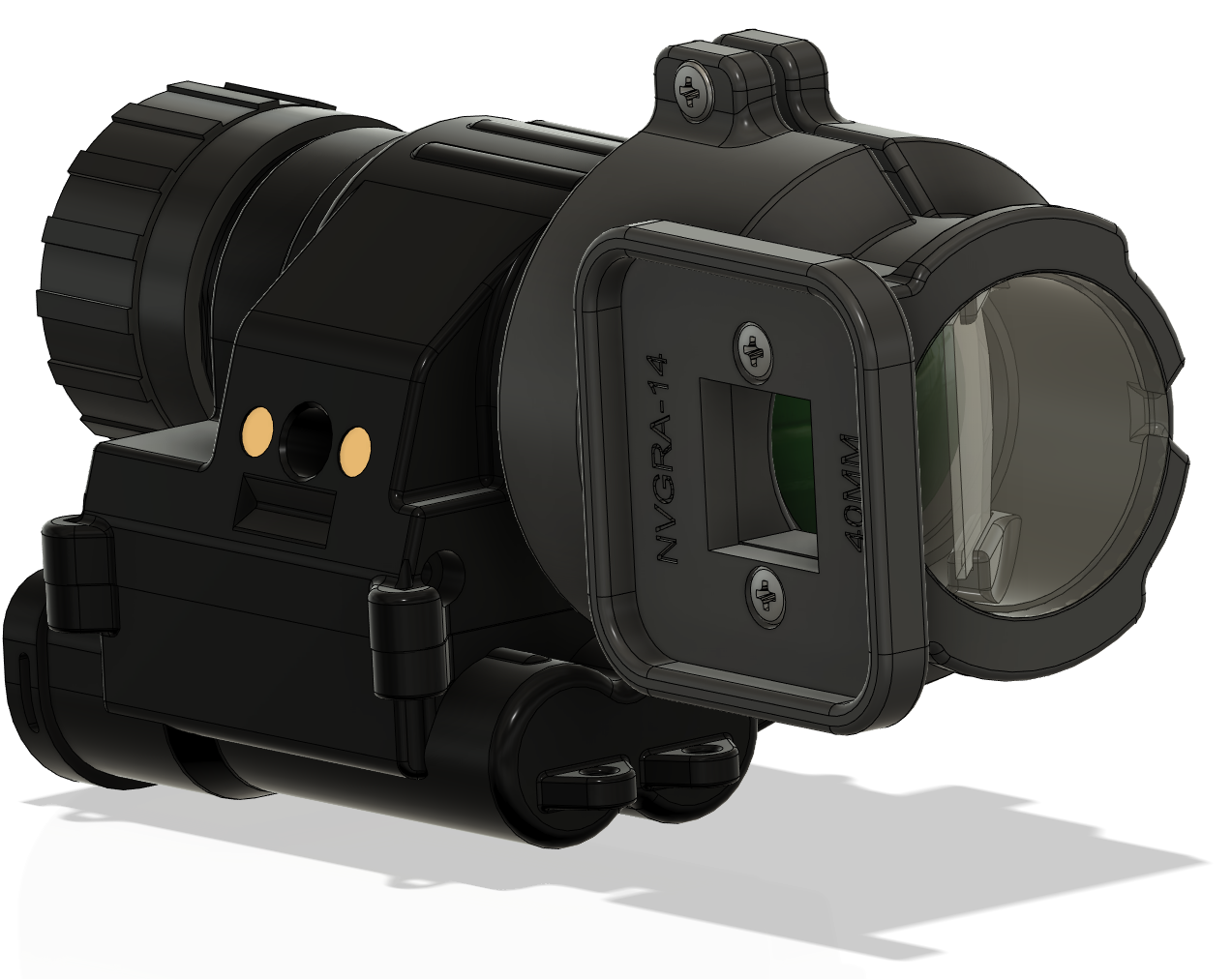

NVGRA-14-M Critical User Dimensions:
NVGRA-14-32 Critical User Dimensions:
NVGRA-14-40 Critical User Dimensions:
Legacy Models
As the NVGRA design iterates, models will end up in this Legacy section.
TOP NVGRA 2017 Release
This is the original NVGRA. Read more about its story on our about page.
NVGRA-14-32 & NVGRA-40
These were the first commercially available NVGRA from the relaunch in 2023.
They contained lesson-learned features from the original NVGRA and were printed from modern, rugged resin.

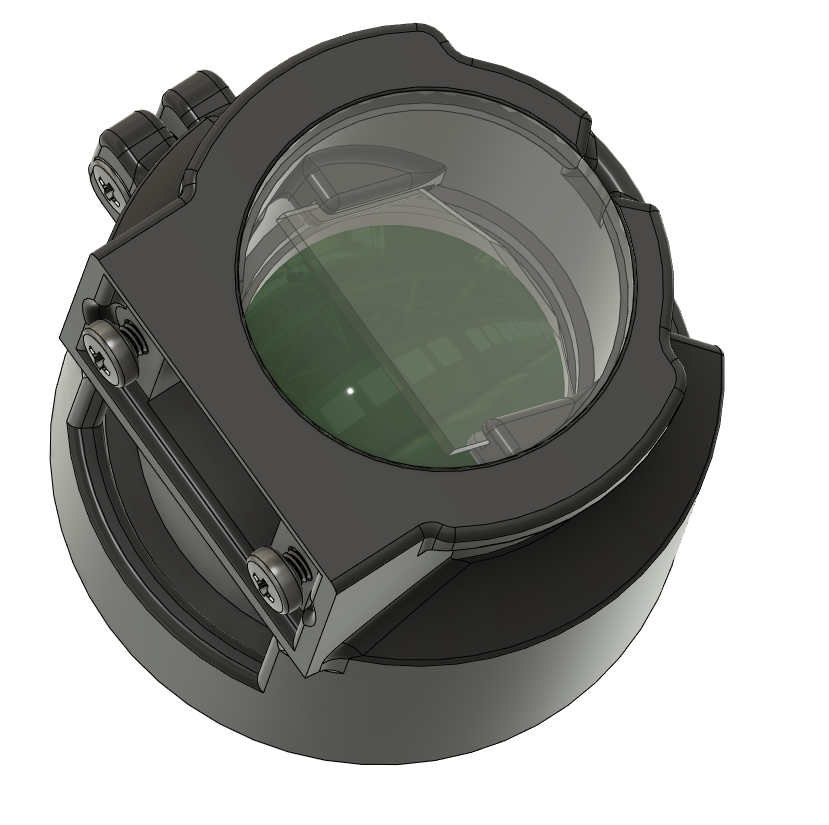

NVGRA-14-M
Building off of the -32 & -40 variants, the Modular (M) NVGRA allowed users to swap between camera cups rather than purchasing additional NVGRA as the compatibility list grew.
NVGRA-14-PMC
A culmination of the iterations designed in 2023, the Polymer, Modular, Cut (PMC) NVGRA encorporated features that were rolled into a patent application.
- Polycarb beam splitter manufactured in the USA
- Modular camera adapters for compatibility with many action cameras
- Cut-out geometry with removable cowling for intimate positioning
